30 seconds/unit Semi-Auto Mattress PE Film and Kraft Paper Packing Machine Price | LR-MP-40P Specifications

    Technical Specifications of LianRou LR-MP-40P Semi-Auto Mattress Packing Machine


    Core Technology Features

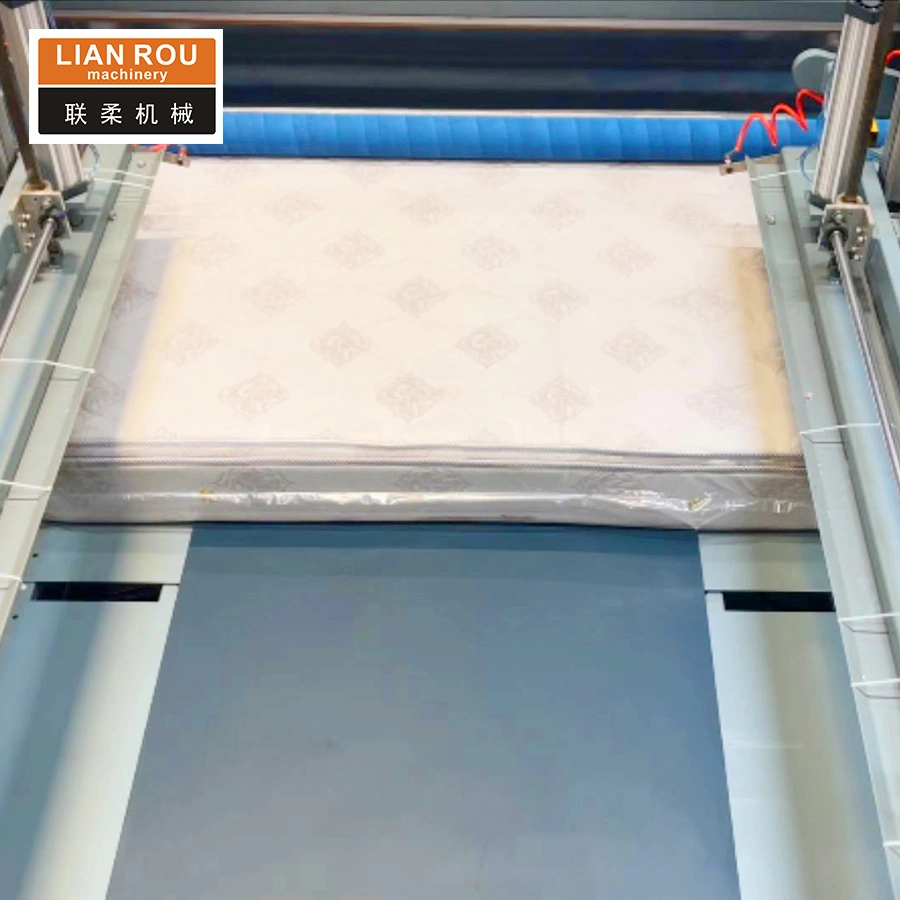

    Precision PE Film Wrapping System


    The LR-MP-40P semi-automatic packing machine utilizes advanced servo control technology with film tension accuracy within ±0.5N range. Equipped with vacuum assistance device, effectively removes air between film and mattress during packaging process. The four-direction stretching system ensures uniform coverage on all six surfaces without wrinkles.

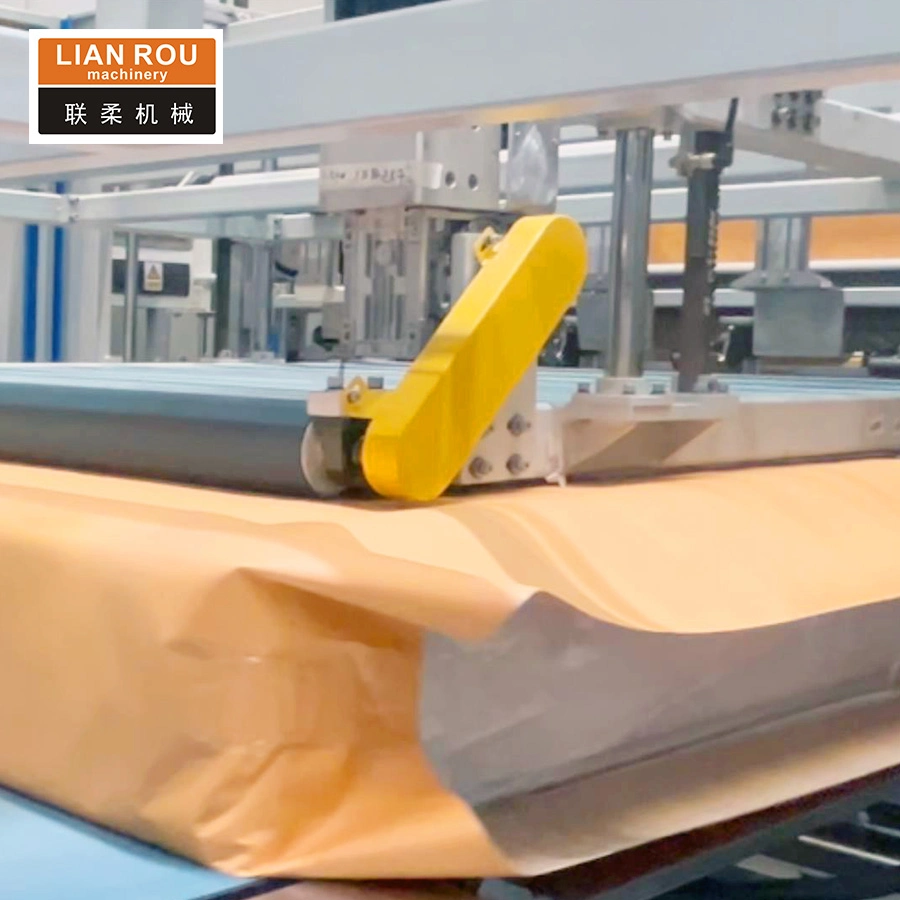

    Intelligent Kraft Paper Packaging Module


    Features an automatic paper feeding system handling kraft paper materials. Photoelectric positioning technology achieves ±1mm accuracy. Automatic deviation correction ensures centered paper placement. Supports single and double-layer kraft paper packaging modes.


    Technical Parameters & Performance Indicators

    Basic Specifications:

    • Model: LR-MP-40P Semi-Auto Mattress Packing Machine
    • Packaging Size Range: Length 1800-2200mm × Width 900-2000mm
    • Packaging Speed: 15-25 pieces/hour (adjustable)
    • Total Power: 7.5KW
    • Control System: PLC + 10-inch Touch Screen

    Material Compatibility:

    • PE Film Thickness: 0.08-0.15mm
    • Kraft Paper Specification: Roll paper, max roll diameter 800mm
    • Suitable Product Thickness: 100-350mm

    Production Application Advantages

    User-Friendly Design

    Modular design enables installation within 3-5 working days. Bilingual interface (Chinese/English) with graphical operation guide. Key parameter settings feature password protection. Self-diagnosis system monitors equipment status with audio-visual alerts.

    Quality Control System

    Each unit undergoes 72-hour continuous operation testing including:

    • Film Adhesion Test: Bubble area ratio <1%
    • Kraft Paper Coverage Test: Edge deviation <2mm
    • Packaging Strength Test: Meets ISTA 1A standard
    • Continuous Operation: No failure for ≥48 hours

    Cost-Benefit Analysis

    ROI Calculation:

    • Labor Cost Savings: Reduces 3-4 operators vs manual packaging
    • Material Utilization: Film savings 15%, kraft paper 12%
    • Quality Improvement: Transport damage rate reduced to <0.5%
    • Equipment Payback Period: Typically 12-18 months

    Maintenance Plan:

    • Daily Maintenance: 10-minute basic check by operators
    • Regular Service: Professional maintenance quarterly
    • Spare Parts: 72-hour response for common parts
    • Technical Support: Remote guidance + on-site service

    Industry Application Cases

    After implementing LR-MP-40P equipment, a premium hotel mattress supplier achieved:

    • Efficiency Improvement: Increased from 8 to 22 pieces/hour
    • Packaging Pass Rate: Improved from 92% to 99.5%
    • Customer Complaint Rate: Reduced by 85%
    • Annual Packaging Cost: Decreased approx. ¥280,000

    Ideal Applications Include:

    • Luxury hotel mattress packaging
    • Custom mattress production packaging
    • Export mattress product packaging
    • Seasonal promotion product packaging
    • Memory foam and hybrid mattress packaging

    Special Features for Export Markets:

    • CE certification compliance
    • Voltage customization (220V/380V/440V)
    • Multi-language operation manuals
    • International shipping packaging standards
    • Remote technical support availability

    Customization Options:

    • Special size configurations
    • Brand-specific packaging patterns
    • Automated corner guard placement
    • Barcode/RFID integration
    • Production data collection systems

    Environmental Considerations:

    • Energy-saving motor systems
    • Recyclable packaging materials compatibility
    • Reduced film consumption technology
    • Low-noise operation design
    • Eco-friendly manufacturing processes
