| Model | LR-KPLINE-21P |
| Application | Pocket spring mattress without border frame; foam mattress; latex mattress |
| Packing method | Roll-packing, one unit in one roll |
| Packing material | PE film or PE bag |
| Compression or not | Yes |
| Speed | 35 seconds per unit |
| Air consumption | 1.0 m2/min. |
Air pressure | 0.6-0.7 mpa |
| Power consumption in total | (Packing part) 25KW;(Rolling part) 55KW |
| Voltage | 3AC 380V |
| Frequency | 50/60HZ |
| Input Current | (Packing part) 50A;(Rolling part) 55A |
| Cable section | 3*16mm2 + 2*10mm2/ 3*16mm2+2*10mm2(2 groups of power cables for roll-packing) |
| Working temperature | +5℃ ~ +35℃ |
| Weight | 12000Kg |
| Consumption data |
| Type | PE flim |
| Thickness | 0.1~0.15mm |
| Inner dia.of packing material | Min.70mm |
| Outer dia.of packing material | Max.300mm
|
| Width of packing material | Max.2700mm |
| General data |
| Mattress Width | 2000mm |
| Mattress Length | 2200mm |
| Mattress Thickness | 60~400mm |
| Diameter of finished roll | 220~500mm |
| Data of secondary roll-packing |
| Width of sealing tape | 65~85mm |
| Type | Kraft paper |
| Width of kraft paper | 900mm |
| Thickness of kraft paper | 120g/m2 |
Fully Automatic Mattress Secondary Roll and Compress Packing Machine
LR-KPLINE-21P Fully Automatic Mattress Secondary Roll and Compress Packing Machine is an innovative roll-packing solution for mattress manufacturers. Designed for efficiency, this fully automatic mattress roll-packing machine performs secondary compression and packing of finished mattresses with precision and ease.
Feature of Automatic Mattress Secondary Roll and Compression Packing Machine
1. The highlight of its function is the secondary compression and packing of the finished mattress
2. Automatic packing of kraft paper and PE film. More environmentally friendly for kraft paper. More economical for PE material.
3. Automatic compression of the mattress and sealing of the PE film
Roll-packing of the mattress for second times

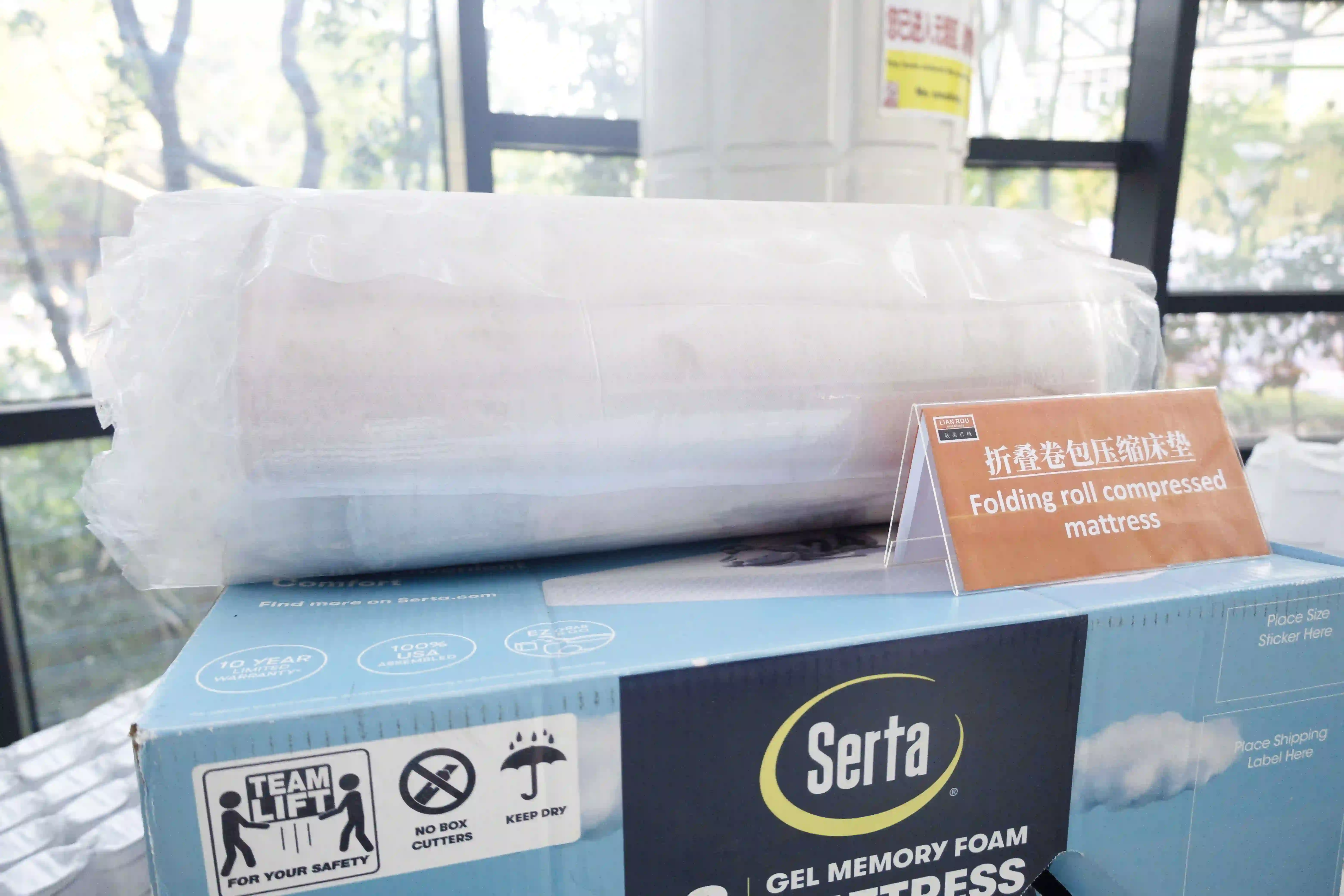

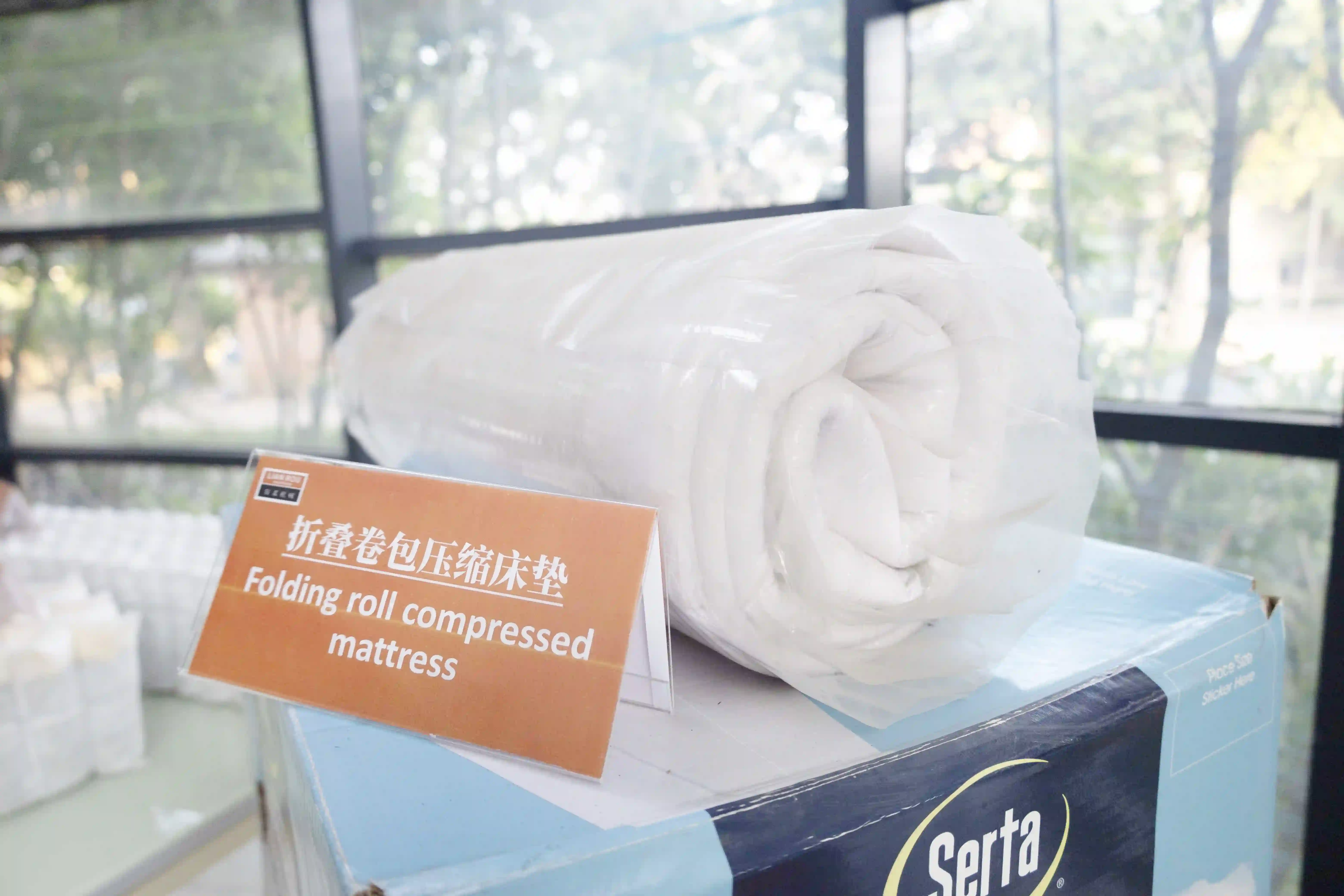

Before roll-packing: mattress size, 2000*1800*250mm
After roll-packing: mattress roll diameter 410mm, Height 670mm
As a leading mattress machinery manufacturer, LianRou Mattress Machinery exports to over 150 countries, serving 2000+ well-known mattress brands. Our LR-KPLINE-21P machine is a perfect addition to your mattress factory, boosting productivity and ensuring your mattresses reach customers in optimal condition.
Applications:
- Pocket spring mattresses (including high-compression and micro-pocket types)
- Foam mattresses
- Latex mattresses
- Roll-packed mattress logistics and export packaging
Invest in the LR-KPLINE-21P Fully Automatic Mattress Secondary Roll and Compress Packing Machine today and enhance your mattress manufacturing efficiency and packaging quality.
Introducing our revolutionary Roll-packing machine - an Automatic mattress secondary roll-packing machine that is designed to roll-pack finished mattresses with no hassle or stress. Our Roll-packing machine is equipped with advanced technology that allows for the secondary compression and packing of your finished mattress with ease and precision.
The Roll-packing machine is designed to be user-friendly, and its advanced features make it the perfect machine for all your roll-packing needs. One of the key highlights of our Roll-packing machine is its secondary compression and packing functionality which ensures that your finished mattress is well-compressed and tightly packed for delivery to your customers.
The Roll-packing machine also features automatic packing of PE film, allowing for quick and efficient packing of your finished mattress. The automatic compression of the mattress and sealing of the PE film, as well as the roll-packing of the mattress for second times, make this machine a valuable addition to your mattress manufacturing facility.
Our Roll-packing machine is specifically designed to handle mattresses of varying sizes, with the ability to handle mattress sizes of up to 2000*1800*250mm. After roll-packing, the mattress roll diameter measures 410mm, and the height is 670mm – a perfect shape and size for easy handling and transportation.
Our Roll-packing machines can also be used for infinity pocket spring mattresses, foam mattresses and latex mattresses., making it a versatile machine that can handle different types of mattresses with ease.
When it comes to the manufacturing of mattresses, our Roll-packing machine is a game-changer. It is one of the most efficient and innovative machines in the industry, designed to help you reduce the time and labor required to roll-pack your finished mattresses.
In conclusion, if you are in the mattress manufacturing business, our Roll-packing machine is a must-have for your facility. With its advanced features, user-friendly interface, and ability to handle a wide range of mattress sizes and types, this machine is the perfect investment for any mattress manufacturer. Order now and experience the benefits of our Roll-packing machine first-hand!
