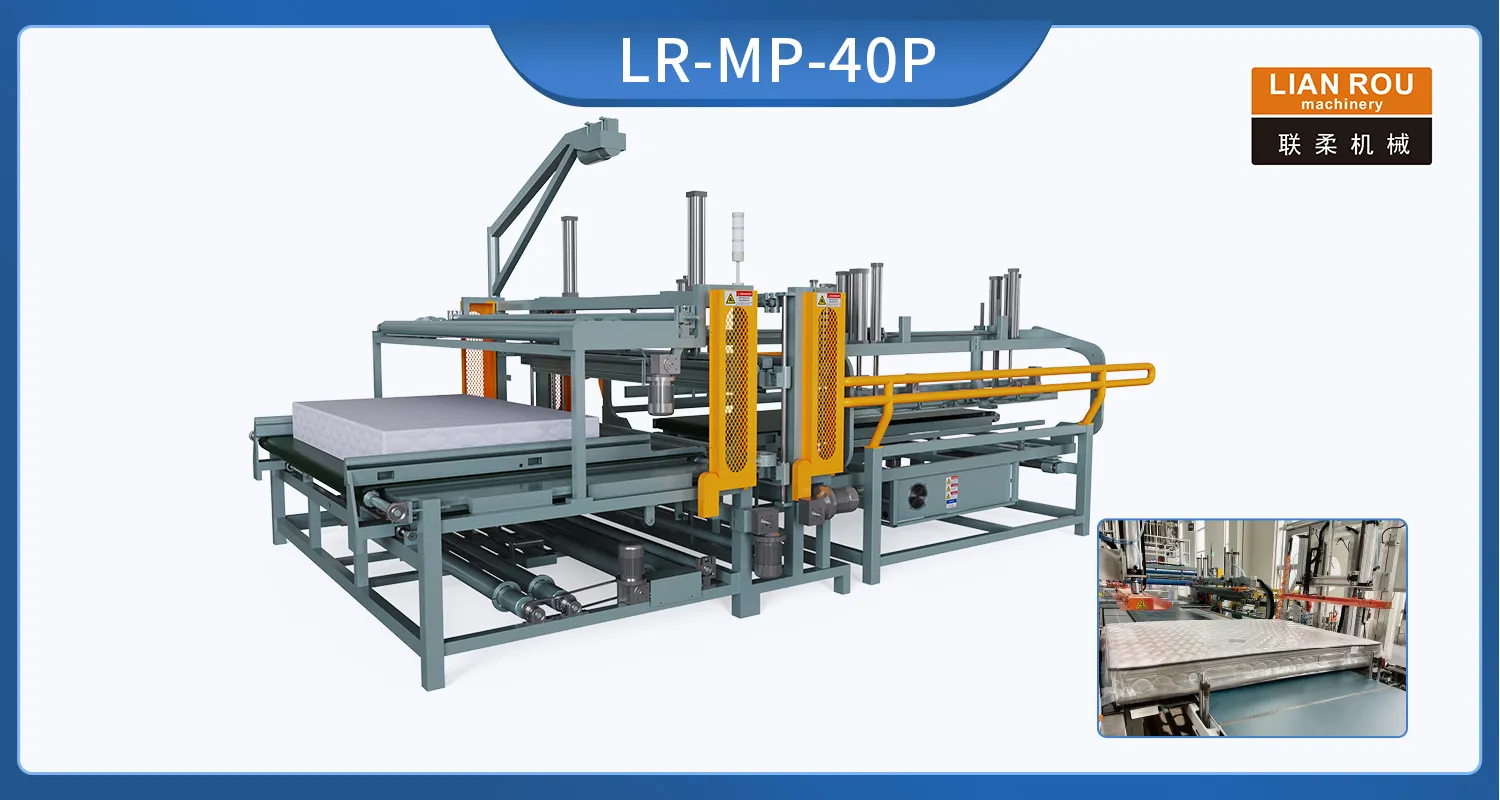

LR-MP-40P Machine d’emballage automatique de film de matelas

Automatic Mattress Box Sealing Machine

Model: LR-MP-40P

Smooth packing ,space saving

Lianrou Patent Product

Technical Specification

Application

Finished Mattress

Packing method

Flat packing

Packing material

PE film

Compressing or not

NO

SpeedIn 30 seconds/unitAir ConsumptionApprox. 1 m³/min.

Air Pressure

0.6-0.7 mpa

Power Consumption in total

20KW

Voltage

3AC 380V

Frequency

50/60Hz

Input current

40A

Cable Section

3*16mm² + 2*10mm²

Working Temperature

+5°C～+35°C

Weight

≈4000KG

Consumption Material Data

Type

PE FILM

Thickness0.08-0.1mm

Width of packing material

65-80mm

General Data

Mattress Width

Max. 2000mm

Mattress Length

Max. 2200mm

Diameter of finished roll220-500mm

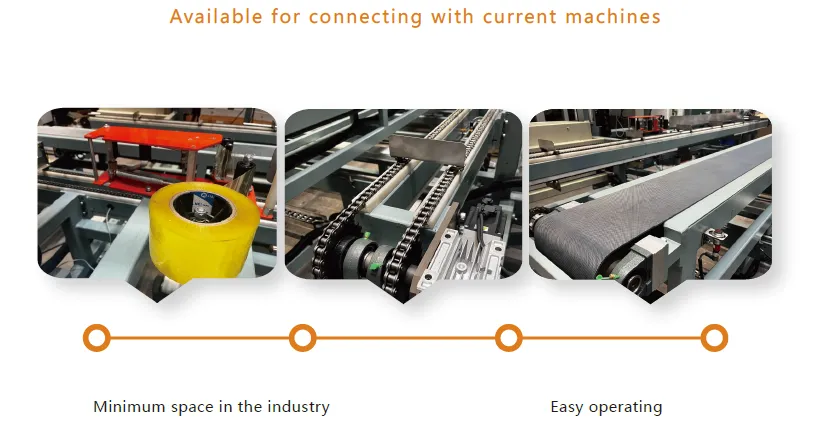

Machine Highlights

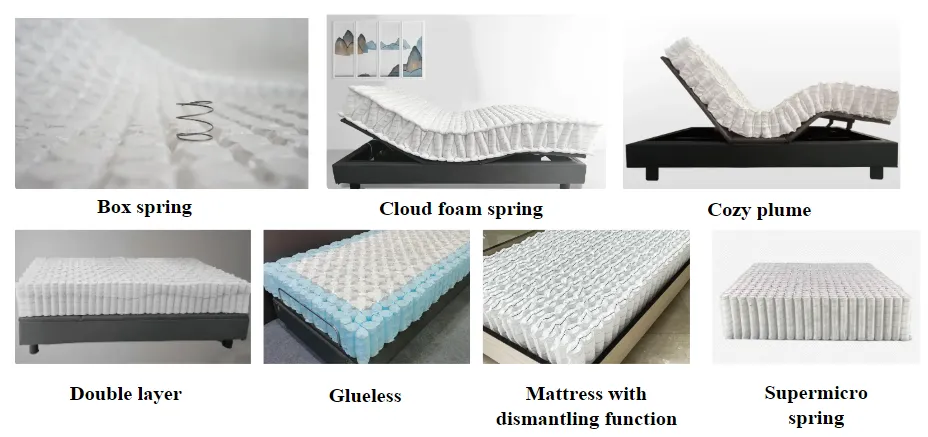

Bag Spring Bed Core Display
